Introducere » AUTOCARE » IRISBUS (Iveco) » Motor Renault 9.8TD (MIDR06.2) » Piston complet STD motor Renault 9.8TD





Piston complet STD motor Renault 9.8TD









                      Piston complet STD motor Renault 9.8TD
















Piston complet STD motor Renault 9.8TD





















                      Numar produs:

                            91683700






                        PRODUCATOR:


                                    NURAL






                        ARTiCOL:


                                    91683700







                        Preţul corect fără TVA                          :



      950 ron






                        Preţul corect cu TVA (19 %):





        1 131 ron












în coş:





        buc










































DATE TEHNICE,DIMENSIUNI






Dimensiune standard (STD) , Bolt 49.975 mm, Lungime bolt 97,4 mm, Nr. componente 87930, Nr. componente 87931, Nr. componente 87932, cantitate 3, Numar de productie 120147, Alezaj- 120,02 mm, Inaltime compresie 83,8 mm, Lungime 134,8 mm, Adancime oala 1 23 mm, Adancime scaun ventil 1 0,8 mm, Adancime scaun ventil 2 1,1 mm, Diametru oala 73,7 mm


















FISIERE TEHNICE

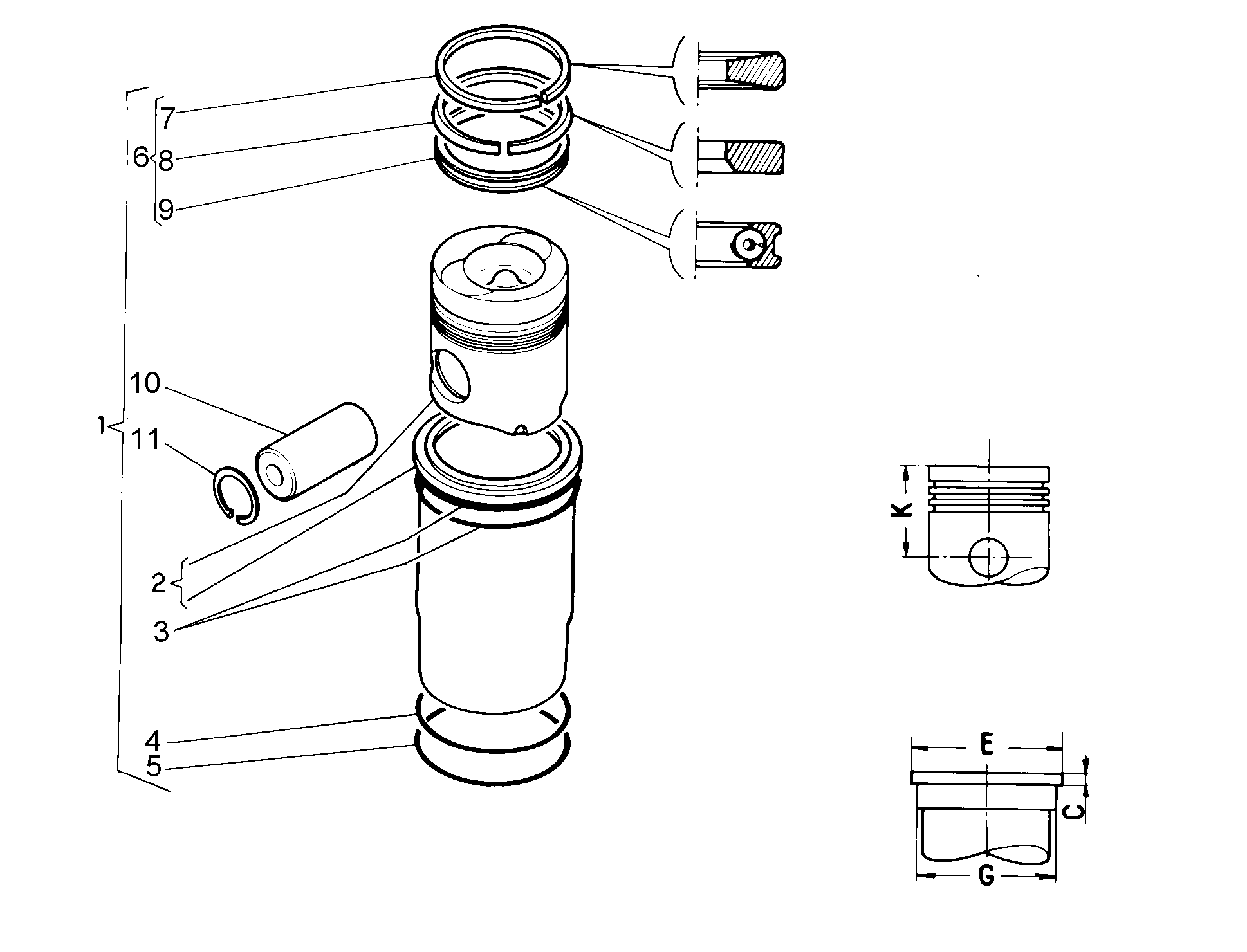

 Vezi schita
